FDM 3D Printing Protocol
Fused Deposition Modeling for functional prototypes and end-use parts. Industrial-grade thermoplastics engineered for strength, heat resistance, and chemical stability.
Materials & Filaments
PLA+
StandardEnhanced PLA with improved strength and layer adhesion. Ideal for visual prototypes and concept models.
ABS
EngineeringHeat resistant to 105°C with excellent impact strength. Suited for functional testing and enclosures.
PETG
EngineeringChemical resistant with good flexibility. Food-safe applications and outdoor exposure capable.
Nylon PA12
High PerformanceSuperior wear resistance and self-lubricating properties. Gears, bearings, and moving parts.
Carbon Fiber
High PerformanceChopped carbon fiber reinforced. Exceptional stiffness-to-weight ratio for structural components.
Polycarbonate
High PerformanceImpact resistant with high heat deflection (140°C). Transparent and optically clear options available.
ASA
EngineeringUV stable for outdoor applications. Maintains color and mechanical properties under sun exposure.
TPU Flexible
SpecialtyShore 95A hardness elastomer. Gaskets, seals, grips, and vibration dampening components.
Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Build Volume | 300 × 300 × 400 mm | Larger parts can be split and assembled |
| Layer Height | 0.1 – 0.3 mm | 0.2mm standard, 0.1mm for detail work |
| Dimensional Accuracy | ± 0.2 mm | Post-processing can improve to ± 0.1mm |
| Minimum Wall Thickness | 0.8 mm | 1.2mm recommended for strength |
| Infill Options | 15% – 100% | Gyroid, honeycomb, and grid patterns |
| Nozzle Diameter | 0.4 – 0.8 mm | 0.6mm for faster prints, 0.4mm standard |
| Turnaround Time | 24 – 72 hours | Rush options available |
Key Advantages
Rapid Iteration
Test multiple design variants in days, not weeks. Fail fast, learn faster.
Functional Strength
Engineering materials that can handle real-world loads and stresses.
Color Options
Wide range of colors available. Multi-color prints for assembly visualization.
Large Format
Print big parts in one piece or split strategically for optimal orientation.
Cost Effective
Most economical 3D printing process. Ideal for iterative development budgets.
Heat Resistance
Materials rated from 60°C to 140°C heat deflection for demanding environments.
Project Gallery

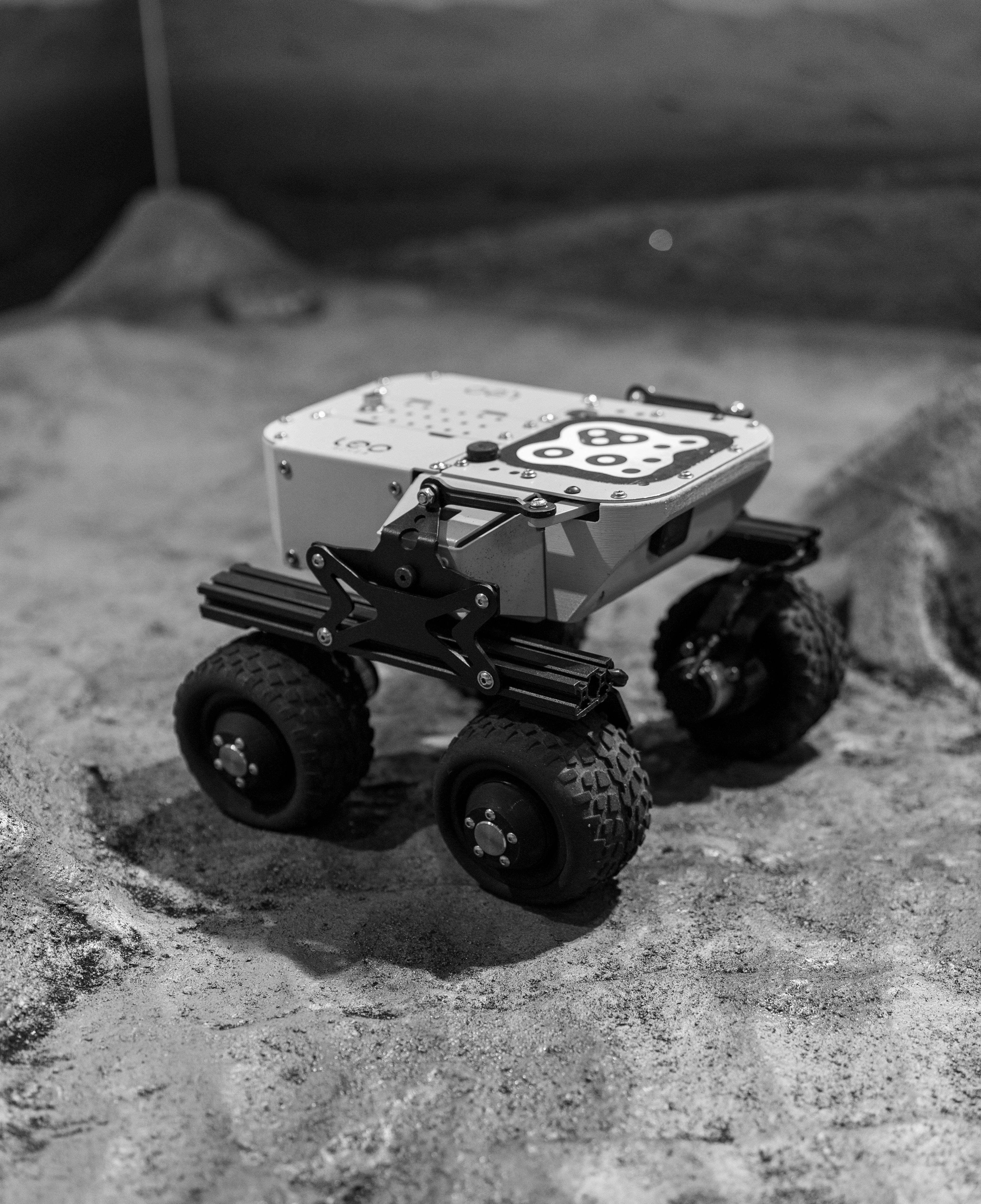

Mechanical Assembly

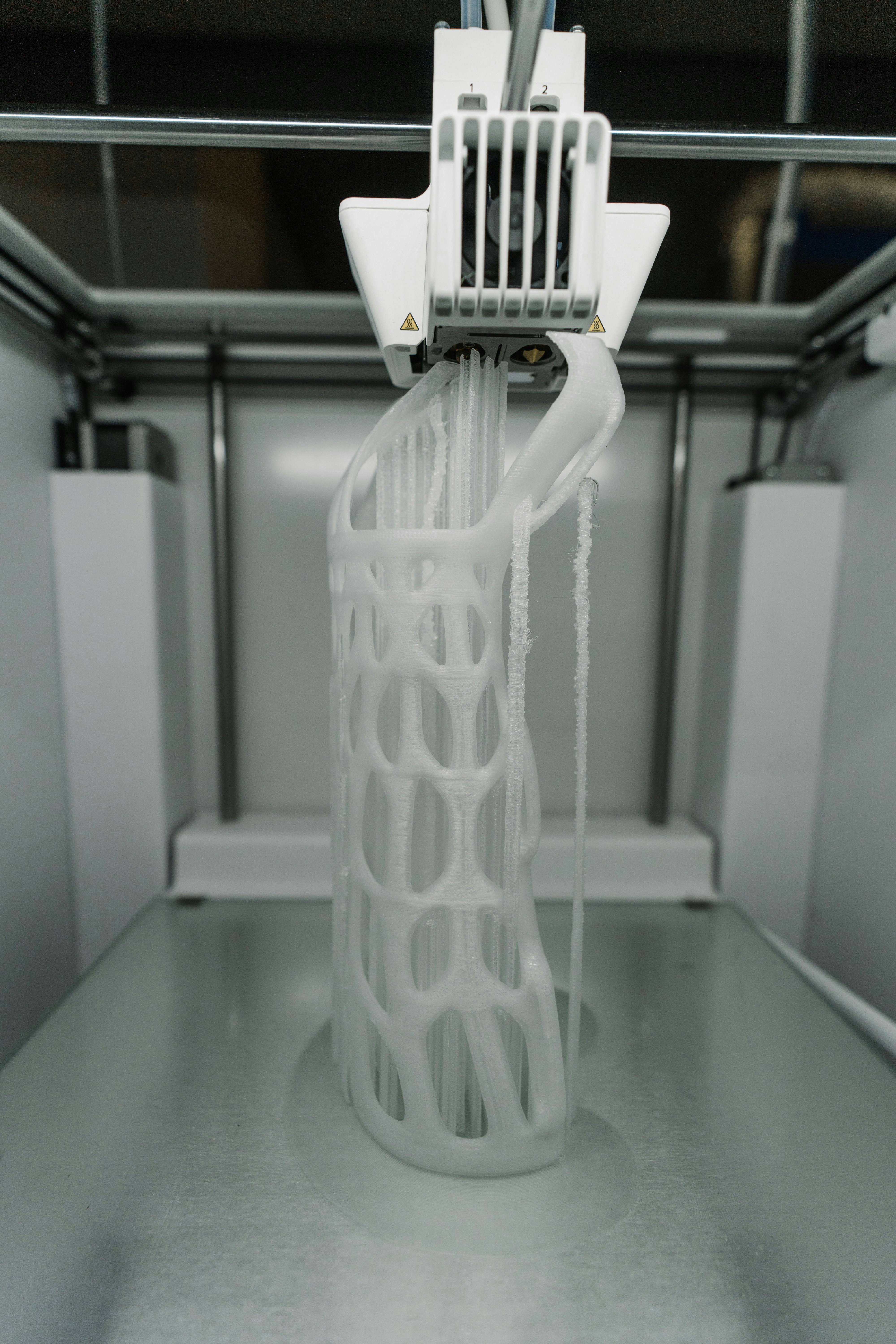

Industrial Fixtures

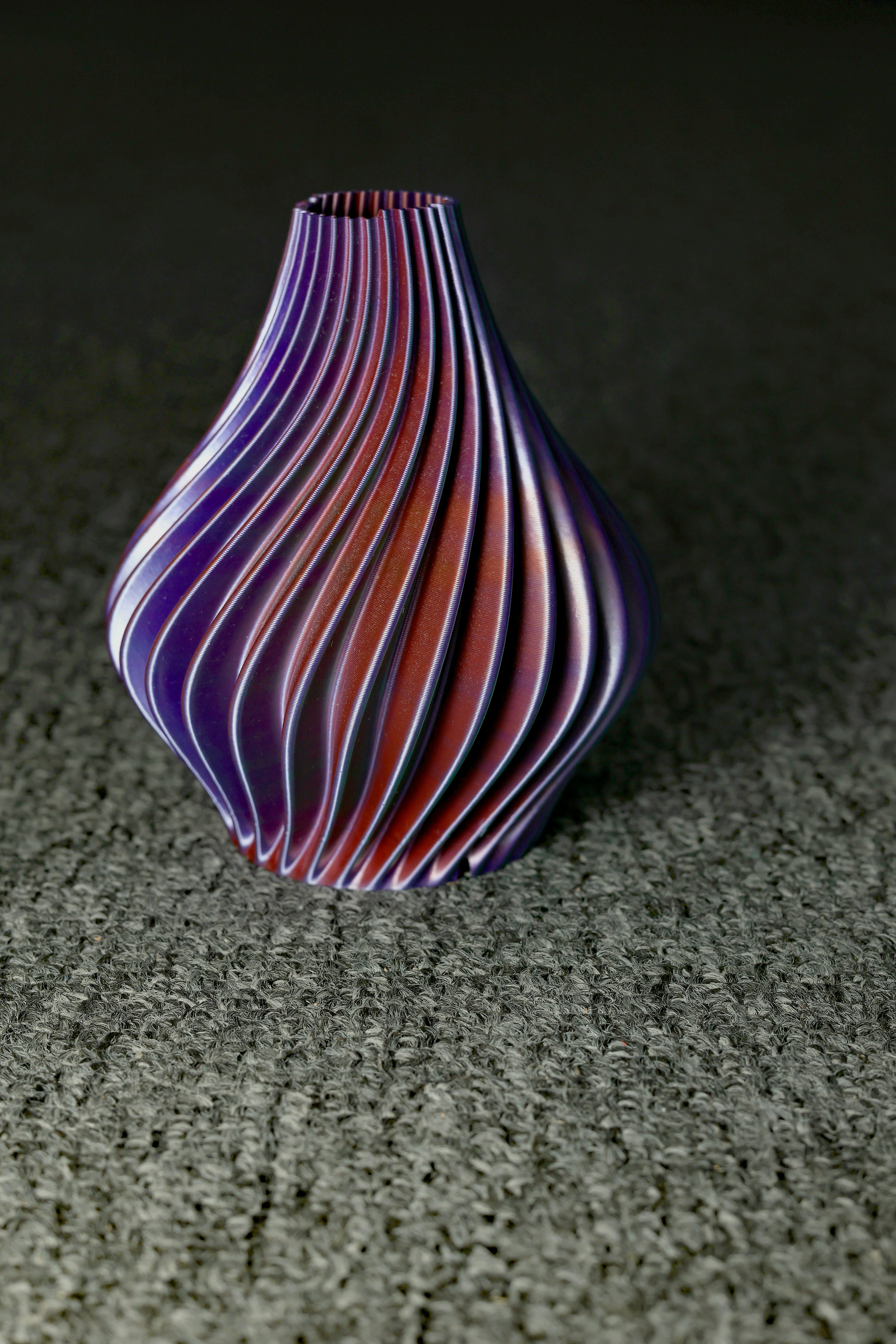

Prototype Iteration
Ready to build?
Upload your CAD, tell us your deadline, and we’ll recommend the best process + materials for your part.
